Plugging your new LED neon sign is as easy as plugging a table lamp! With our easy-to-follow guide below, you'll be illuminating your space in no time. Let's get started!
Connecting Your Sign:
Refer to Figure 1 below and follow these steps:
- Connect the sign to the dimmer using the connector(s) as shown below, noting that larger signs can be equipped with 2 connectors or more.
- Connect the dimmer to the power supply using the connector(s).
- Plug the power cord into an appropriate outlet.
- Insert batteries into the remote control.
- Use the remote control to turn on the sign. More on how to use the remote control here

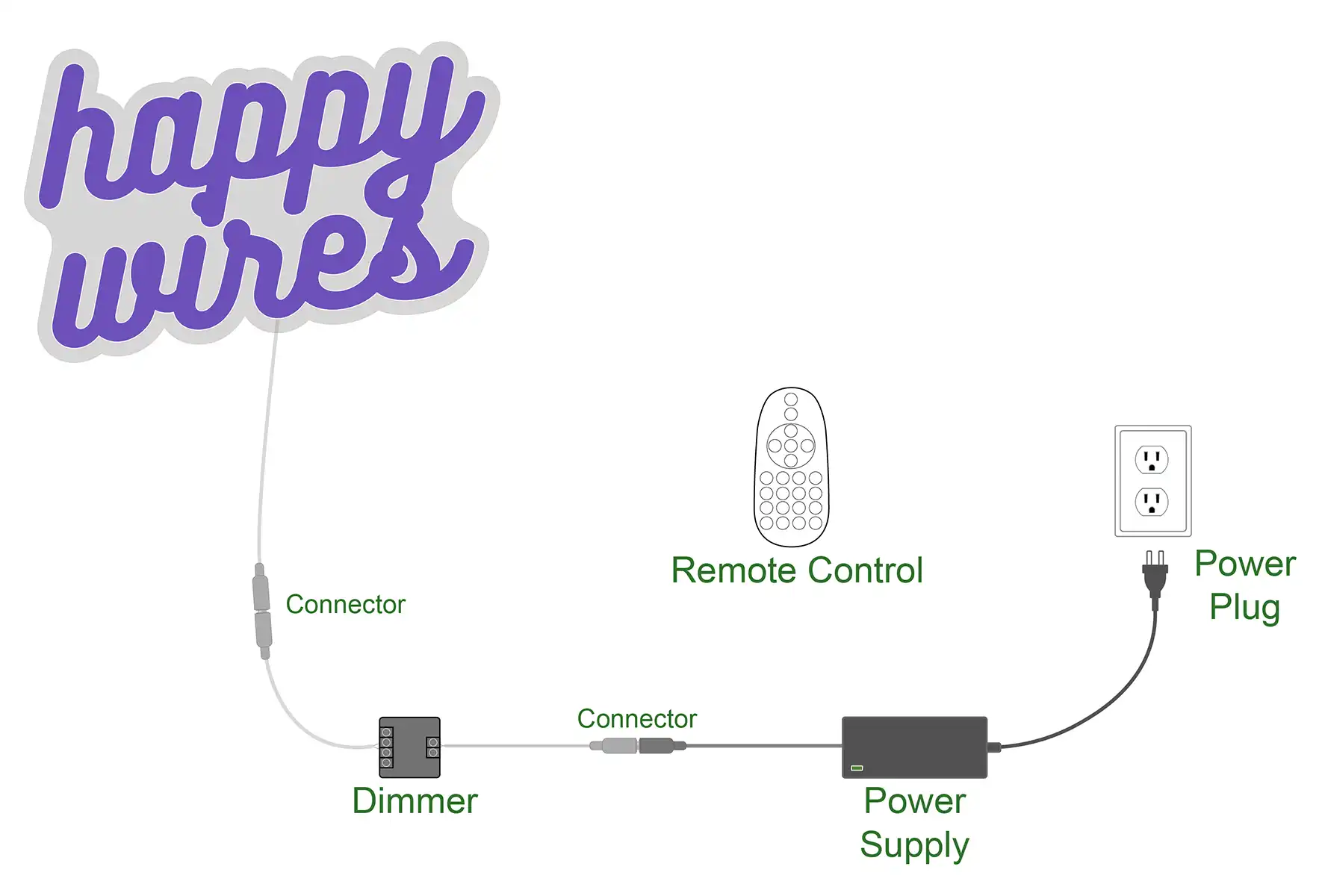

Figure 1. Wiring Diagram for Small to Medium LED Neon Signs:
Figure 2. Wiring Diagram for Large Neon Signs:
Some designs are manufactured into separate pieces as shown in Figure 3 below.
Figure 3. Wiring Diagram for LED Neon Signs with multiple separate pieces:
Shown in Figure 4 below, Larger LED neon signs may require the use of a larger Power Supply that provides the necessary wattage to power up large signs.
Figure 4. Large Signs Equipped with Large Power Supply
LED Neon Sign Components:
-

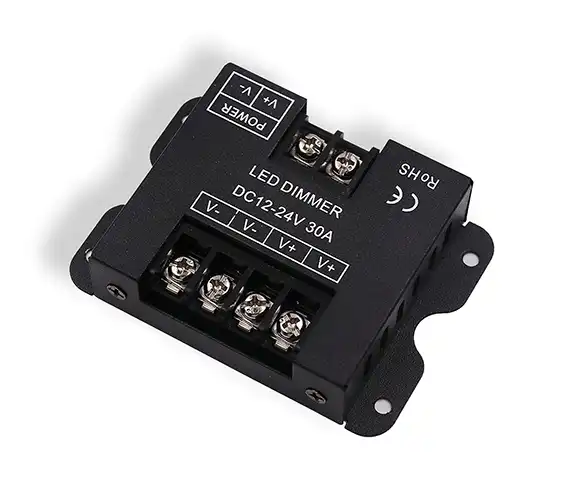

Dimmer
-

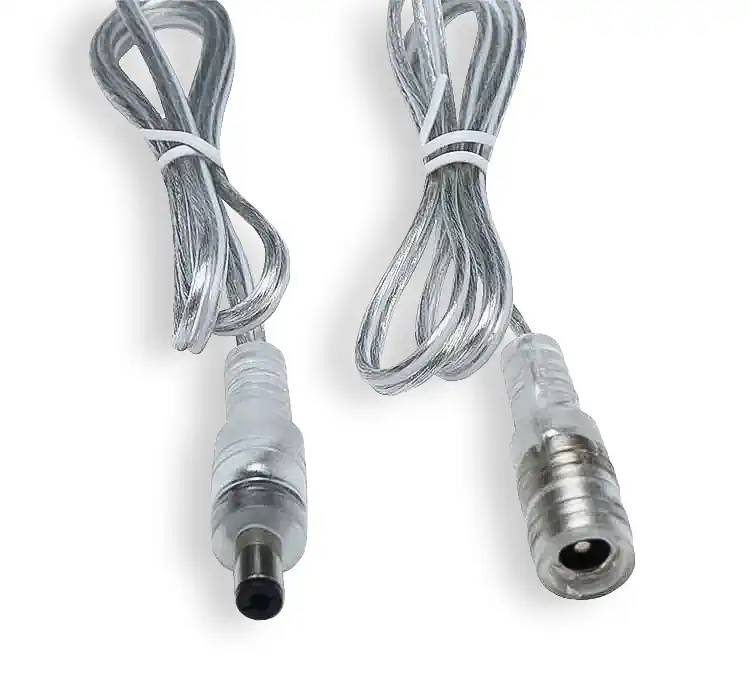

Cables with connectors:
- For better aesthetics, cables and connectors wired between the sign and dimmer are transparent.
- For better aesthetics, cables and connectors wired between the sign and dimmer are transparent.
-

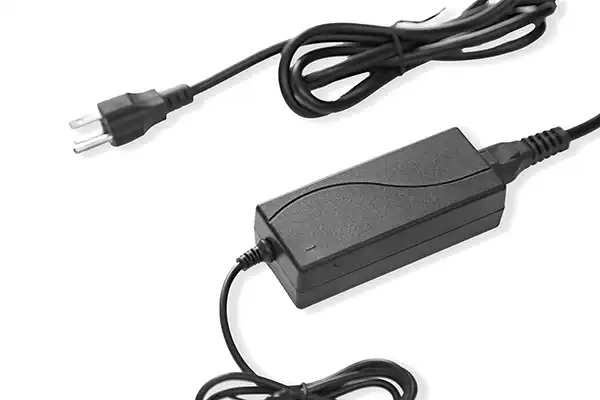

Power Supply with Power Plug:
- We provide country-specific power plugs for UK, EU, AU & USA
- We provide country-specific power plugs for UK, EU, AU & USA
